Moto Guzzi Norge 1200 GT 8V

Moto Guzzi Norge 1200 GT 8V

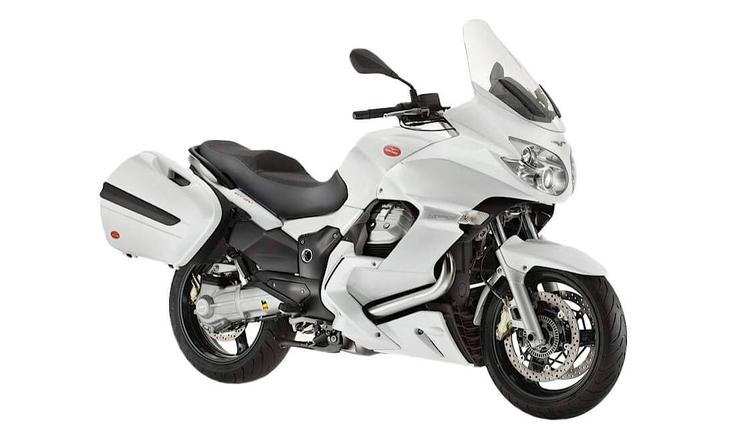

The 2009 Moto Guzzi Norge 1200 GT 8V is a stylish and Touring motorcycle with Oil/air cooled, 90° V-twin and 89.74 HP (66 kW) @ 7500 rpm.

year icon
Model year
2009
power icon
Engine Power
89.74 HP (66 kW) @ 7500 rpm
Speed icon
Top Speed
130 mph

Technical Specifications

Engine and transmission

  • Engine type:
    2 cylinders, 4-stroke, 90° V-twin
  • Displacement:
    1151 cc (70.33 cubic inches)
  • Bore × stroke:
    3.74 inch × 3.2 inch (oversquare - shortstroke)
  • Cooling system:
    Oil/air cooled
  • Power:
    89.74 HP (66 kW) @ 7500 rpm
  • Torque:
    100 Nm (73.76 lb-ft) @ 5800 rpm
  • Throttle:
    Cable operated
  • Valve train:
    OHV, variable
  • Valves per cylinder:
    2
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Fuel injection
  • Ignition type:
    Digital CDI
  • Funnel diameter:
    1.77 inch
  • Compression:
    9.8:1
  • Engine mounting:
    Longitudinal
  • Lubrication system:
    Dry sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Dry, single plate, cable operated
  • Final drive:
    Sprocket
  • Starter:
    Electric

Dimensions

  • Length:
    86.4 inch
  • Width:
    34.3 inch
  • Height:
    44.3 inch
  • Wheel base:
    58.9 inch
  • Trail:
    4.7 inch
  • Ground clearance:
    7.28 inch
  • Seat height:
    31.5 inch
  • Dry weight:
    542.3 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Suspension travel:
    4.72 inch
    Brake:
    Twin Disk, Ø12.6 inch
    Tire:
    120 / 90 R17 ZR
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    5.51 inch
    Brake:
    Disk, Ø11.1 inch
    Tire:
    180 / 55 R17 ZR
  • Frame type:
    steel, Backbone frame

Other

  • ABS available:
    No
  • Fuel capacity:
    6.08 gals
  • Number of riders:
    2 persons
