Yamaha FZ 750 Genesis

Yamaha FZ 750 Genesis

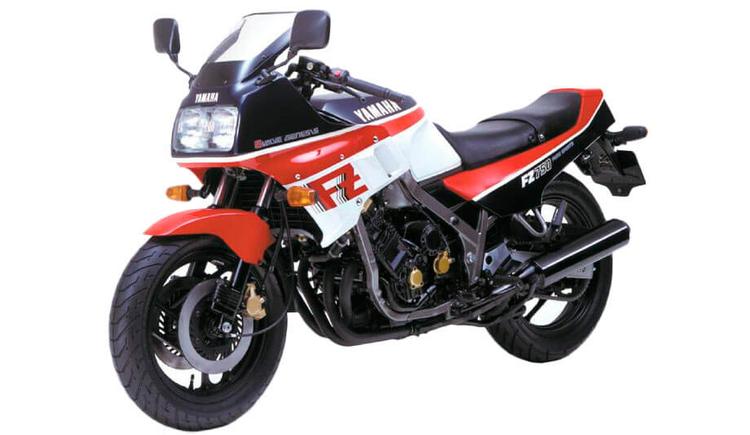

The 1985 Yamaha FZ 750 Genesis is a stylish and Supersport motorcycle with DOHC, 749cc, Inline-4, aluminium, twin spar and 101.43 HP (74.6 kW).

year icon
Model year
1985
make icon
Make
Yamaha
power icon
Engine Power
101.43 HP (74.6 kW)
Speed icon
Top Speed
---

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    749 cc (45.76 cubic inches)
  • Bore × stroke:
    2.68 inch × 2.03 inch (oversquare - shortstroke)
  • Power:
    101.43 HP (74.6 kW)
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    TCI (Transistor Controlled Ignition)
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DR8ES-L
  • Motor oil:
    10W/40

Dimensions

  • Curb weight:
    504.9 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Twin Disk
    Tire:
    120 / 80 R16
    Tire pressure:
    0.13 PSI, with pillion: 0.15 PSI withpilion
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Disk
    Tire:
    130 / 80 R18
    Tire pressure:
    0.15 PSI, with pillion: 0.19 PSI withpilion
  • Frame type:
    aluminium, twin spar

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.33 KW/lbs (3.07 lbs/HP)
  • Fuel capacity:
    5.55 gals
  • Number of riders:
    2 persons
