Aermacchi 250 Ala Verde serie 1

Aermacchi 250 Ala Verde serie 1

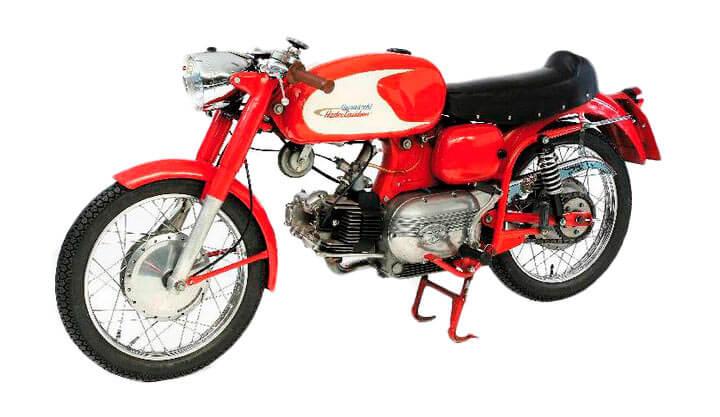

The 1967 Aermacchi 250 Ala Verde serie 1 is a stylish and Classic motorcycle with Air cooled, 246cc, Single, OHV and 16.04 HP (11.8 kW) @ 6500 rpm.

year icon
Model year
1967
power icon
Engine Power
16.04 HP (11.8 kW) @ 6500 rpm
Speed icon
Top Speed
91.96 mph

Technical Specifications

Engine and transmission

  • Engine type:
    1 cylinders, 4-stroke, Single
  • Displacement:
    246 cc (15.03 cubic inches)
  • Bore × stroke:
    2.6 inch × 2.83 inch (undersquare - longstroke)
  • Cooling system:
    Air cooled
  • Power:
    16.04 HP (11.8 kW) @ 6500 rpm
  • Throttle:
    Cable operated
  • Valve train:
    OHV, variable
  • Valves per cylinder:
    2
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    mechanically timed
  • Funnel diameter:
    0.94 inch
  • Compression:
    8.5:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 4-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Starter:
    Kick-starter

Dimensions

  • Length:
    76.3 inch
  • Width:
    30 inch
  • Height:
    35.8 inch
  • Wheel base:
    52 inch
  • Seat height:
    29 inch
  • Curb weight:
    251.3 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Single Drum, Ø7.09 inch
  • Rear
    Suspension:
    twin shock, Swingarm
    Brake:
    Drum, Ø7.09 inch
  • Frame type:
    steel, Backbone frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.10 KW/lbs (9.66 lbs/HP)
  • Top speed:
    91.96 mph
  • Fuel capacity:
    4.49 gals
  • Number of riders:
    2 persons
