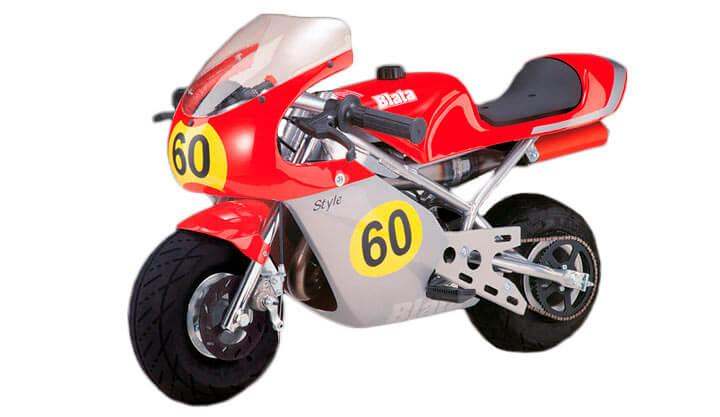

Blata Style 60

Blata Style 60

The engine was a air cooled single cylinder, two-stroke.

year icon
Model year
2005
type icon
Type
Others
make icon
Make
Blata
power icon
Engine Power
3.26 HP (2.4 kW)
Weight icon
Curb Weight
46.3 lbs

Technical Specifications

Engine and transmission

  • Engine type:
    1 cylinders, 2-stroke, Single
  • Displacement:
    39 cc (2.38 cubic inches)
  • Cooling system:
    Air cooled
  • Power:
    3.26 HP (2.4 kW)
  • Torque:
    3.5 Nm (2.58 lb-ft)
  • Throttle:
    Cable operated
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Engine mounting:
    Transverse
  • Gear box:
    Automatic
  • Clutch:
    Wet, centrifugal clutch, cable operated
  • Final drive:
    Chain

Dimensions

  • Length:
    37 inch
  • Width:
    19.7 inch
  • Height:
    21.3 inch
  • Curb weight:
    46.3 lbs
  • Dry weight:
    37.5 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Single Disk, Ø4.69 inch
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Disk, Ø4.69 inch
  • Frame type:
    steel, Trellis frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.11 KW/lbs (8.75 lbs/HP)
  • Fuel capacity:
    0.26 gals
  • Number of riders:
    2 persons
