BMW F650

BMW F650

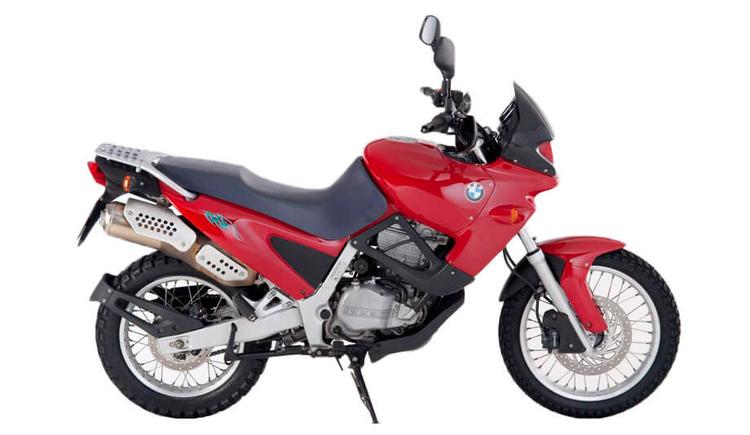

The 1997 BMW F650 is a stylish and Offroad motorcycle with Water cooled, 652cc, DOHC and 47.59 HP (35 kW) @ 6500 rpm.

year icon
Model year
1997
make icon
Make
BMW
power icon
Engine Power
47.59 HP (35 kW) @ 6500 rpm
Speed icon
Top Speed
101.28 mph

Technical Specifications

Engine and transmission

  • Engine type:
    1 cylinders, 4-stroke, Single
  • Displacement:
    652 cc (39.84 cubic inches)
  • Bore × stroke:
    3.94 inch × 3.27 inch (oversquare - shortstroke)
  • Cooling system:
    Water cooled
  • Power:
    47.59 HP (35 kW) @ 6500 rpm
  • Torque:
    57 Nm (42.04 lb-ft) @ 5200 rpm
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    Analogue CDI (Capacitive Discharge Ign.)
  • Funnel diameter:
    1.3 inch
  • Compression:
    9.7:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Dry sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, D 8 EA
  • Starter:
    Electric

Dimensions

  • Length:
    85.8 inch
  • Width:
    34.6 inch
  • Height:
    48 inch
  • Wheel base:
    58.3 inch
  • Ground clearance:
    7.09 inch
  • Seat height:
    31.9 inch
  • Curb weight:
    421.1 lbs
  • Dry weight:
    383.6 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Suspension travel:
    6.69 inch
    Brake:
    Single Disk, Ø11.81 inch
    Tire:
    100 / 90 R19 57S
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    6.5 inch
    Brake:
    Disk, Ø9.45 inch
    Tire:
    130 / 80 R17 65S
  • Frame type:
    steel, Single cradle frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.18 KW/lbs (5.46 lbs/HP)
  • Acceleration (0-60 mph):
    6.2 sec
  • Top speed:
    101.28 mph
  • Fuel capacity:
    4.62 gals
  • Number of riders:
    2 persons
