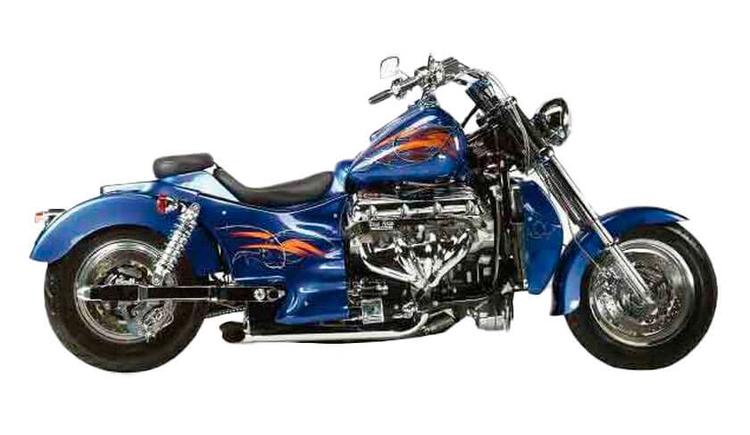

Boss Hoss ZZ4 350 (355 hp version)

Boss Hoss ZZ4 350 (355 hp version)

This bike enters into the category of custom / cruiser and the first model of the Boss hoss zz4 350 (355 hp version).

year icon
Model year
2003
power icon
Engine Power
352.28 HP (259.1 kW) @ 5200 rpm
Weight icon
Curb Weight
1190.5 lbs

Technical Specifications

Engine and transmission

  • Engine type:
    8 cylinders, 4-stroke, V8
  • Displacement:
    5735 cc (350.41 cubic inches)
  • Cooling system:
    Water cooled
  • Power:
    352.28 HP (259.1 kW) @ 5200 rpm
  • Torque:
    567 Nm (418.2 lb-ft) @ 4200 rpm
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Funnel diameter:
    33.46 inch
  • Compression:
    10:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual
  • Clutch:
    Wet, slipper, cable operated
  • Final drive:
    Belt
  • Motor oil:
    Synthetic
  • Starter:
    Electric

Dimensions

  • Width:
    28 inch
  • Wheel base:
    80 inch
  • Ground clearance:
    7.01 inch
  • Seat height:
    27 inch
  • Curb weight:
    1190.5 lbs
  • Dry weight:
    1100.1 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge - upside-down
    Fork angle:
    33°
    Brake:
    Single Disk, Ø12.6 inch
    Tire:
    130 / 90 R16
  • Rear
    Suspension:
    twin shock, Swingarm
    Brake:
    Disk, Ø12.6 inch
    Tire:
    230 / 60 R15
  • Frame type:
    steel, Backbone frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.48 KW/lbs (2.08 lbs/HP)
  • Fuel capacity:
    8.5 gals
  • Number of riders:
    2 persons
