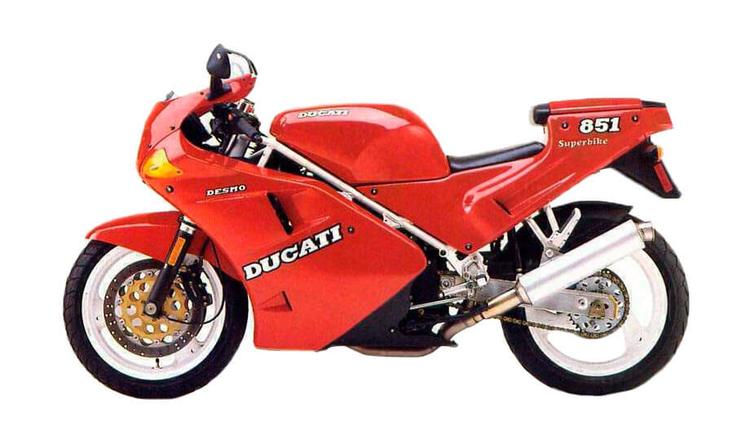

Ducati 851 Strada

Ducati 851 Strada

The Strada was graced with a 17-inch front wheel greatly improving handling. 29 race replicas of the Lucchinelli machine was also made available to the public.

year icon
Model year
1989
make icon
Make
Ducati
power icon
Engine Power
92.32 HP (67.9 kW) @ 9600 rpm
Speed icon
Top Speed
225 km/h

Technical Specifications

Engine and transmission

  • Engine type:
    2 cylinders, 4-stroke, 90° V-twin
  • Displacement:
    851 cc (52 cubic inches)
  • Bore × stroke:
    92 mm × 64 mm (oversquare - shortstroke)
  • Cooling system:
    Water cooled
  • Power:
    92.32 HP (67.9 kW) @ 9600 rpm
  • Torque:
    77.48 Nm (7.9 kg-m) @ 6800 rpm
  • Throttle:
    Cable operated
  • Valves
    Valve train:
    SOHC, variable
    Valves per cylinder:
    4
  • Fuel and ignition
    Sparks per cylinder:
    1
    Fuel supply system:
    Carburetor
    Ignition type:
    Analogue CDI (Capacitive Discharge Ign.)
  • Compression:
    10:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    Champion, RA6HC
  • Motor oil:
    Synthetic, 10W/40
  • Starter:
    Electric

Dimensions

  • Wheel base:
    1395 mm
  • Seat height:
    780 mm
  • Weight
    Curb weight:
    225 kg
    Dry weight:
    202 kg

Chassis and suspension

  • Frame type:
    steel, Trellis frame
  • Front
    Suspension:
    Cartridge - upside-down
    Suspension travel:
    120 mm
    Brake:
    Twin Disk, Ø320 mm
    Tire:
    120 / 60 R17 ZR
    Tire pressure:
    2.1 bar
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    136 mm
    Brake:
    Disk, Ø245 mm
    Tire:
    180 / 55 R17 ZR
    Tire pressure:
    2.3 bar

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.30 HP/kg (3.31 kg/HP)
  • Top speed:
    225 km/h
  • Fuel capacity:
    20 l
  • Number of riders:
    2 persons
