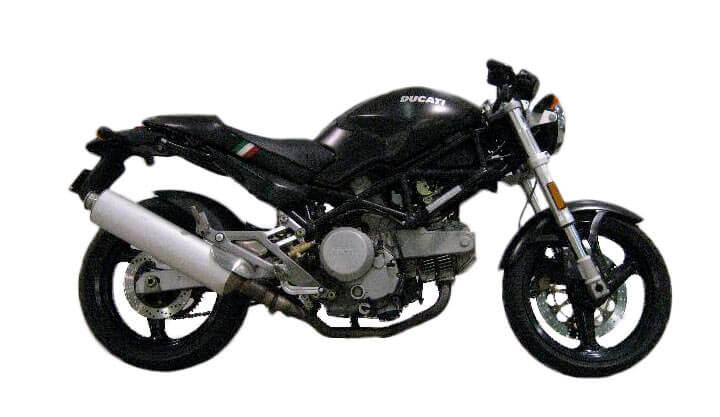

Ducati Monster 620

Ducati Monster 620

The 2003 Ducati Monster 620 is a stylish and All-Rounder motorcycle with Air cooled, 618cc, 90° V-twin, SOHC and 59.82 HP (44 kW) @ 9500 rpm.

year icon
Model year
2003
make icon
Make
Ducati
power icon
Engine Power
59.82 HP (44 kW) @ 9500 rpm
Speed icon
Top Speed
124.27 mph

Technical Specifications

Engine and transmission

  • Engine type:
    2 cylinders, 4-stroke, 90° V-twin
  • Displacement:
    618 cc (37.76 cubic inches)
  • Bore × stroke:
    3.15 inch × 2.42 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    59.82 HP (44 kW) @ 9500 rpm
  • Torque:
    53 Nm (39.09 lb-ft) @ 6750 rpm
  • Throttle:
    Cable operated
  • Valve train:
    SOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Fuel injection
  • Ignition type:
    Analogue CDI (Capacitive Discharge Ign.)
  • Funnel diameter:
    1.77 inch
  • Compression:
    10.5:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DCPR8E
  • Motor oil:
    Semi-Synthetic, 10W/40
  • Starter:
    Electric

Dimensions

  • Length:
    82.7 inch
  • Width:
    31.3 inch
  • Height:
    31.3 inch
  • Wheel base:
    56.7 inch
  • Trail:
    3.8 inch
  • Ground clearance:
    4.72 inch
  • Seat height:
    30.3 inch
  • Curb weight:
    390.2 lbs
  • Dry weight:
    352.7 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge - upside-down
    Suspension travel:
    5.12 inch
    Fork angle:
    24°
    Brake:
    Twin Disk, Ø12.6 inch
    Tire:
    120 / 60 R17 ZR
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    5.83 inch
    Brake:
    Disk, Ø9.65 inch
    Tire:
    160 / 60 R17 ZR
  • Frame type:
    steel, Trellis frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.25 KW/lbs (4.02 lbs/HP)
  • Top speed:
    124.27 mph
  • Fuel capacity:
    3.96 gals
  • Number of riders:
    2 persons
