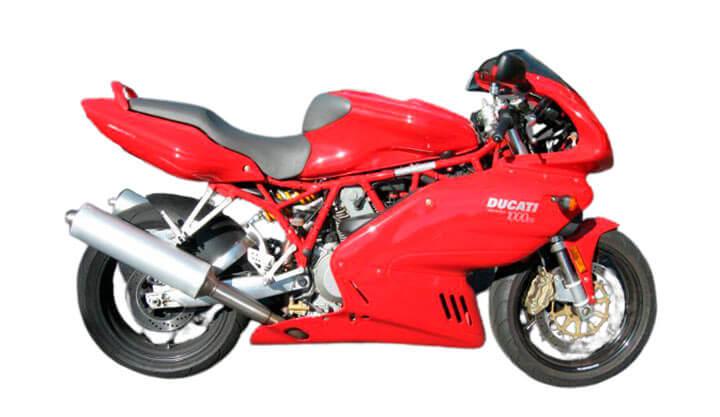

Ducati Supersport 1000 DS

Ducati Supersport 1000 DS

The 2004 Ducati Supersport 1000 DS is a stylish and Supersport motorcycle with Air cooled, 992cc, V-twin and 93 HP (68.4 kW) @ 7750 rpm.

year icon
Model year
2004
make icon
Make
Ducati
power icon
Engine Power
93 HP (68.4 kW) @ 7750 rpm
Speed icon
Top Speed
143 mph

Technical Specifications

Engine and transmission

  • Engine type:
    2 cylinders, 4-stroke, V-twin
  • Displacement:
    992 cc (60.61 cubic inches)
  • Bore × stroke:
    3.7 inch × 2.81 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    93 HP (68.4 kW) @ 7750 rpm
  • Torque:
    9.7 Nm (7.15 lb-ft) @ 5750 rpm
  • Throttle:
    Cable operated
  • Valve train:
    SOHC, variable
  • Valves per cylinder:
    2
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Fuel injection
  • Ignition type:
    Analogue CDI (Capacitive Discharge Ign.)
  • Funnel diameter:
    1.77 inch
  • Compression:
    10:1
  • Engine mounting:
    Longitudinal
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Dry, single plate, hydraulic operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DCPR8E
  • Motor oil:
    Synthetic, 10W/40
  • Starter:
    Electric

Dimensions

  • Length:
    79.9 inch
  • Width:
    30.7 inch
  • Height:
    43.7 inch
  • Wheel base:
    54.9 inch
  • Trail:
    3.9 inch
  • Ground clearance:
    4.65 inch
  • Seat height:
    32.3 inch
  • Curb weight:
    438.7 lbs
  • Dry weight:
    394.6 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge - upside-down
    Suspension travel:
    4.72 inch
    Fork angle:
    24°
    Brake:
    Twin Disk, Ø12.6 inch
    Tire:
    120 / 70 R17 ZR
    Tire pressure:
    0.14 PSI, with pillion: 0.15 PSI withpilion
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    5.71 inch
    Brake:
    Disk, Ø9.65 inch
    Tire:
    180 / 55 R17 ZR
    Tire pressure:
    0.14 PSI, with pillion: 0.16 PSI withpilion
  • Frame type:
    steel, Trellis frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.34 KW/lbs (2.91 lbs/HP)
  • Fuel capacity:
    4.23 gals
  • Number of riders:
    2 persons
