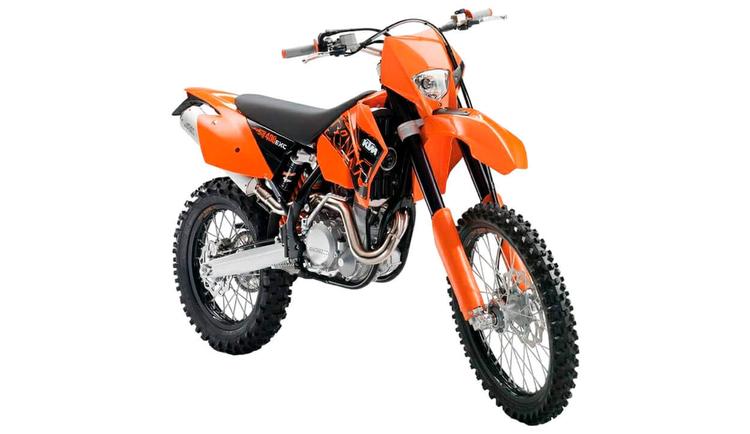

KTM 400 EXC Racing

KTM 400 EXC Racing

The 2001 KTM 400 EXC Racing is a stylish and Offroad motorcycle with Water cooled, 398cc, Single, SOHC and 44 hp (32.1 kW) at 8000 rpm.

year icon
Model year
2001
make icon
Make
KTM
power icon
Engine Power
44 hp (32.1 kW) at 8000 rpm
Speed icon
Top Speed
75 mph

Technical Specifications

Engine and transmission

  • Engine type:
    1 cylinders, 4-stroke, Single
  • Displacement:
    398 cc (24.32 cubic inches)
  • Bore × stroke:
    3.5 inch × 2.52 inch (oversquare - shortstroke)
  • Cooling system:
    Water cooled
  • Throttle:
    Cable operated
  • Valve train:
    SOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    Digital CDI
  • Compression:
    11:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, multiple discs, hydraulic operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, CR8EK
  • Motor oil:
    Synthetic, 10W/40
  • Starter:
    Kick-starter

Dimensions

  • Width:
    15.7 inch
  • Wheel base:
    58.3 inch
  • Trail:
    4.4 inch
  • Ground clearance:
    14.96 inch
  • Seat height:
    36.4 inch
  • Curb weight:
    275.6 lbs
  • Dry weight:
    251.3 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge - upside-down
    Suspension travel:
    4.53 inch
    Fork angle:
    27°
    Brake:
    Single Disk, Ø10.24 inch
    Tire:
    90 / 90 R21 R
    Tire pressure:
    0.07 PSI
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    7.28 inch
    Brake:
    Disk, Ø8.66 inch
    Tire:
    140 / 80 R18 R
    Tire pressure:
    0.07 PSI
  • Frame type:
    alloy, Double cradle frame

Other

  • ABS available:
    No
  • Fuel capacity:
    2.25 gals
  • Number of riders:
    2 persons
