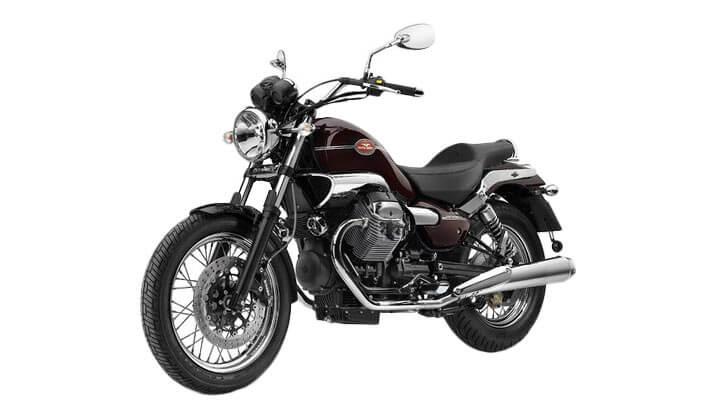

Moto Guzzi Nevada Classic 750

Moto Guzzi Nevada Classic 750

The 2007 Moto Guzzi Nevada Classic 750 is a stylish and Cruiser motorcycle with Air cooled, 744cc, OHV and 47.59 HP (35 kW) @ 6800 rpm.

year icon
Model year
2007
power icon
Engine Power
47.59 HP (35 kW) @ 6800 rpm
Speed icon
Top Speed
105 mph

Technical Specifications

Engine and transmission

  • Engine type:
    2 cylinders, 4-stroke, 90° V-twin
  • Displacement:
    744 cc (45.46 cubic inches)
  • Bore × stroke:
    3.2 inch × 2.9 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    47.59 HP (35 kW) @ 6800 rpm
  • Torque:
    54.7 Nm (40.34 lb-ft) @ 3600 rpm
  • Throttle:
    Cable operated
  • Valve train:
    OHV, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Fuel injection
  • Compression:
    9.6:1
  • Lubrication system:
    Dry sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Dry, single plate, cable operated
  • Final drive:
    Shaft
  • Starter:
    Electric

Dimensions

  • Length:
    85.3 inch
  • Width:
    31.7 inch
  • Height:
    42 inch
  • Wheel base:
    2.3 inch
  • Trail:
    5.4 inch
  • Ground clearance:
    11.42 inch
  • Seat height:
    30.2 inch
  • Dry weight:
    220.5 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Suspension travel:
    5.12 inch
    Fork angle:
    28°
    Brake:
    Single Disk, Ø12.6 inch
    Tire:
    100 / 90 R18 V
  • Rear
    Suspension:
    twin shock, Swingarm
    Suspension travel:
    5.12 inch
    Brake:
    Disk, Ø10.24 inch
    Tire:
    130 / 90 R16 V
  • Frame type:
    steel, Double cradle frame

Other

  • ABS available:
    No
  • Number of riders:
    2 persons
