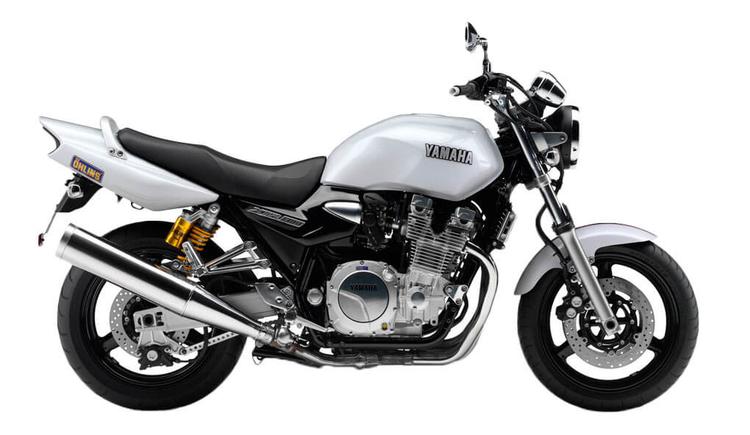

Yamaha XJR 1300

Yamaha XJR 1300

The 1999 Yamaha XJR 1300 is a stylish and Touring motorcycle with Air cooled, 1251cc, DOHC and 98.03 HP (72.1 kW) @ 8000 rpm.

year icon
Model year
1999
make icon
Make
Yamaha
power icon
Engine Power
98.03 HP (72.1 kW) @ 8000 rpm
Speed icon
Top Speed
158.45 mph

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    1251 cc (76.44 cubic inches)
  • Bore × stroke:
    3.11 inch × 2.51 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    98.03 HP (72.1 kW) @ 8000 rpm
  • Torque:
    108.4 Nm (79.95 lb-ft) @ 6000 rpm
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    TCI (Transistor Controlled Ignition)
  • Funnel diameter:
    1.42 inch
  • Compression:
    9.7:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DPR8EA-9
  • Motor oil:
    Mineral, 10W/40
  • Starter:
    Electric

Dimensions

  • Length:
    85.6 inch
  • Width:
    30.1 inch
  • Height:
    43.9 inch
  • Wheel base:
    59.1 inch
  • Trail:
    3.9 inch
  • Ground clearance:
    4.92 inch
  • Seat height:
    31.3 inch
  • Dry weight:
    507.1 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Suspension travel:
    5.12 inch
    Brake:
    Twin Disk, Ø11.73 inch
    Tire:
    120 / 70 R17 ZR
    Tire pressure:
    0.17 PSI, with pillion: 0.17 PSI withpilion
  • Rear
    Suspension:
    twin shock, Swingarm
    Suspension travel:
    4.72 inch
    Brake:
    Disk, Ø10.51 inch
    Tire:
    180 / 55 R17 ZR
    Tire pressure:
    0.17 PSI, with pillion: 0.2 PSI withpilion
  • Frame type:
    steel, Double cradle frame

Other

  • ABS available:
    No
  • Top speed:
    158.45 mph
  • Fuel capacity:
    5.55 gals
  • Number of riders:
    2 persons
