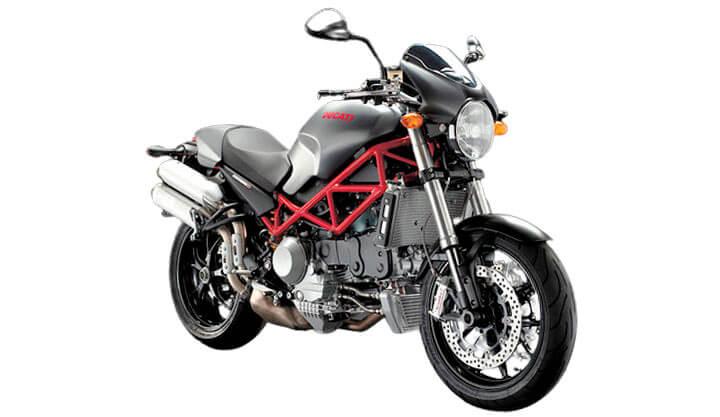

Ducati Monster S4R S Testastretta
The 2006 Ducati Monster S4R S Testastretta is a stylish and All-Rounder motorcycle with Water cooled, 998cc, DOHC and 129.16 HP (95 kW) @ 9500 rpm.
Technical Specifications
Engine and transmission
- Engine type:2 cylinders, 4-stroke, 90° V-twin
- Displacement:998 cc (60.98 cubic inches)
- Bore × stroke:3.94 inch × 2.5 inch (oversquare - shortstroke)
- Cooling system:Water cooled
- Power:129.16 HP (95 kW) @ 9500 rpm
- Torque:103 Nm (75.97 lb-ft) @ 7500 rpm
- Throttle:Cable operated
- Valve train:DOHC, variable
- Valves per cylinder:4
- Sparks per cylinder:1
- Fuel supply system:Fuel injection
- Ignition type:Digital CDI
- Funnel diameter:1.97 inch
- Compression:11.4:1
- Engine mounting:Transverse
- Lubrication system:Wet sump
- Gear box:Manual 6-speed
- Clutch:Wet, multiple discs, cable operated
- Final drive:Chain
- Spark plug pipe type:Champion, RA59GC
- Motor oil:Synthetic, 10w-40
- Starter:Electric
Dimensions
- Length:83 inch
- Width:34.8 inch
- Height:48.1 inch
- Wheel base:56.7 inch
- Trail:3.8 inch
- Ground clearance:5.04 inch
- Seat height:31.5 inch
- Curb weight:425.5 lbs
- Dry weight:390.2 lbs
Chassis and suspension
- FrontSuspension:Cartridge - upside-downSuspension travel:5.12 inchFork angle:24°Brake:Twin Disk, Ø12.6 inchTire:120 / 70 R17 ZRTire pressure:0.14 PSI, with pillion: 0.17 PSI withpilion
- RearSuspension:mono shock, SwingarmSuspension travel:5.83 inchBrake:Disk, Ø9.65 inchTire:180 / 55 R17 ZRTire pressure:0.15 PSI, with pillion: 0.17 PSI withpilion
- Frame type:steel, Trellis frame
Other
- ABS available:No
- Power-to-weight ratio:0.49 KW/lbs (2.03 lbs/HP)
- Top speed:130.49 mph
- Fuel capacity:3.7 gals
- Number of riders:2 persons
