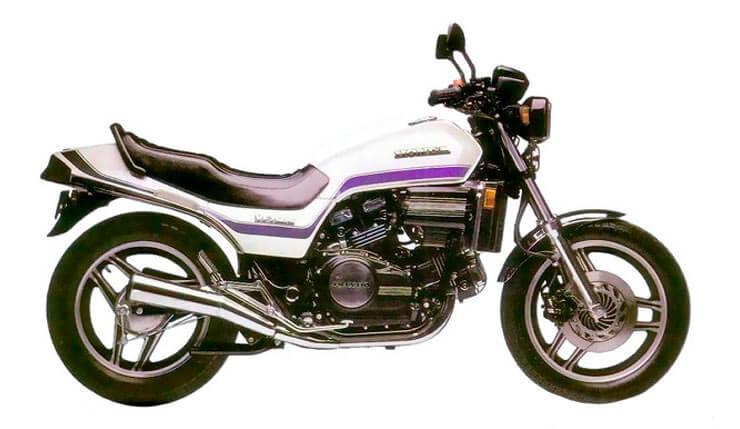

Honda VF 750 S

Honda VF 750 S

year icon
Model year
1983
make icon
Make
Honda
power icon
Engine Power
81.44 HP (59.9 kW) @ 9500 rpm
Speed icon
Top Speed
125.52 mph

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, V4
  • Displacement:
    748 cc (45.7 cubic inches)
  • Bore × stroke:
    2.76 inch × 1.91 inch (oversquare - shortstroke)
  • Cooling system:
    Water cooled
  • Power:
    81.44 HP (59.9 kW) @ 9500 rpm
  • Torque:
    70.61 Nm (52.08 lb-ft) @ 7500 rpm
  • Valves
    Valve train:
    DOHC, variable
    Valves per cylinder:
    4
  • Fuel and ignition
    Sparks per cylinder:
    1
    Fuel supply system:
    Carburetor
    Ignition type:
    TCI (Transistor Controlled Ignition)
    Funnel diameter:
    1.1 inch
  • Throttle:
    Cable operated
  • Compression:
    10.5:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Shaft
  • Spark plug pipe type:
    NGK, DPR 8EA-9
  • Motor oil:
    Mineral, 10W/40
  • Starter:
    Electric

Dimensions

  • Weight
    Curb weight:
    542.3 lbs
    Dry weight:
    493.8 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Suspension travel:
    5.51 inch
    Brake:
    Twin Disk
    Tire:
    110 / 90 R18
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    3.94 inch
    Brake:
    Drum
    Tire:
    130 / 90 R17
  • Frame type:
    steel, Single cradle frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.24 KW/lbs (4.11 lbs/HP)
  • Acceleration (0-60 mph):
    7 sec
  • Top speed:
    125.52 mph
  • Fuel capacity:
    4.62 gals
  • Number of riders:
    2 persons
