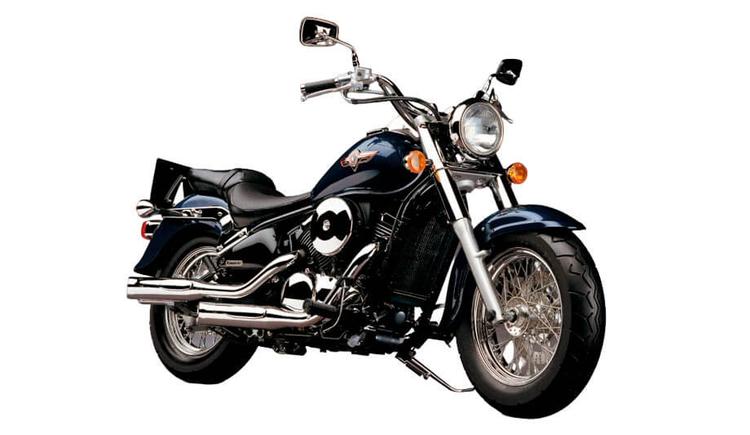

Kawasaki VN 800 Classic
The 1999 Kawasaki VN 800 Classic is a stylish and Cruiser motorcycle with Water cooled, 805cc, V-twin and 54.38 HP (40 kW) @ 7000 rpm.
Technical Specifications
Engine and transmission
- Engine type:2 cylinders, 4-stroke, V-twin
- Displacement:805 cc (49.19 cubic inches)
- Bore × stroke:3.46 inch × 2.6 inch (oversquare - shortstroke)
- Cooling system:Water cooled
- Power:54.38 HP (40 kW) @ 7000 rpm
- Torque:64 Nm (47.2 lb-ft) @ 3300 rpm
- Throttle:Cable operated
- Valve train:SOHC, variable
- Valves per cylinder:4
- Sparks per cylinder:1
- Fuel supply system:Carburetor
- Ignition type:TCI (Transistor Controlled Ignition)
- Funnel diameter:1.26 inch
- Compression:9.5:1
- Engine mounting:Transverse
- Lubrication system:Wet sump
- Gear box:Manual 5-speed
- Clutch:Wet, multiple discs, cable operated
- Final drive:Chain
- Spark plug pipe type:NGK, CR8E
- Motor oil:Semi-Synthetic, 10W/40
- Starter:Electric
Dimensions
- Length:93.7 inch
- Width:37 inch
- Height:44.3 inch
- Wheel base:63 inch
- Trail:5.9 inch
- Ground clearance:6.3 inch
- Seat height:28.5 inch
- Curb weight:560 lbs
- Dry weight:518.1 lbs
Chassis and suspension
- FrontSuspension:CartridgeSuspension travel:5.91 inchBrake:Twin Disk, Ø11.81 inchTire:130 / 90 R16 RTire pressure:0.14 PSI, with pillion: 0.15 PSI withpilion
- RearSuspension:mono shock, SwingarmSuspension travel:3.94 inchBrake:Drum, Ø7.09 inchTire:140 / 90 R16 RTire pressure:0.14 PSI, with pillion: 0.15 PSI withpilion
- Frame type:steel, Double cradle frame
Other
- ABS available:No
- Power-to-weight ratio:0.16 KW/lbs (6.35 lbs/HP)
- Top speed:108.74 mph
- Fuel capacity:3.96 gals
- Number of riders:2 persons
