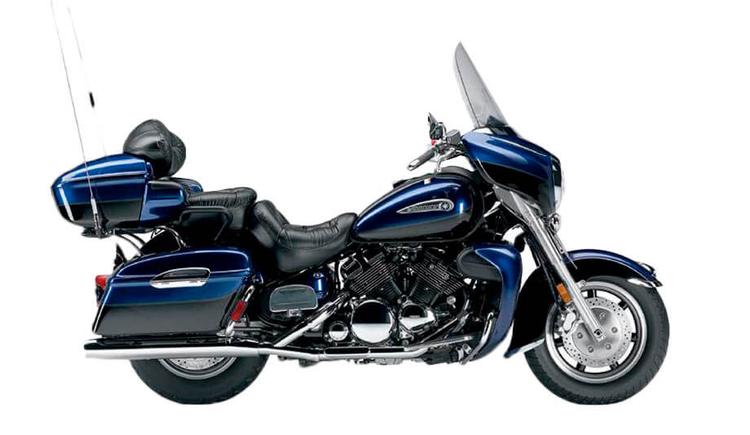

Yamaha XVZ 1300 TF - Royal Star Venture

The 2000 Yamaha XVZ 1300 TF - Royal Star Venture is a stylish and Cruiser motorcycle with Water cooled, 1294cc, DOHC and 97.21 HP (71.5 kW) @ 6000 rpm.

Model year

2000

Type

Cruiser

Make

Yamaha

Engine Power

97.21 HP (71.5 kW) @ 6000 rpm

Top Speed

99.42 mph

Technical Specifications

Engine and transmission

Engine type:
4 cylinders, 4-stroke, 70° V4
Displacement:
1294 cc (79.06 cubic inches)
Bore × stroke:
3.11 inch × 2.6 inch (oversquare - shortstroke)
Cooling system:
Water cooled
Power:
97.21 HP (71.5 kW) @ 6000 rpm
Torque:
123 Nm (90.72 lb-ft) @ 4750 rpm
Throttle:
Cable operated
Valve train:
DOHC, variable
Valves per cylinder:
4
Sparks per cylinder:
1
Fuel supply system:
Carburetor
Ignition type:
TCI (Transistor Controlled Ignition)
Funnel diameter:
1.26 inch
Compression:
10:1
Engine mounting:
Transverse
Lubrication system:
Wet sump
Gear box:
Manual 5-speed
Clutch:
Wet, multiple discs, cable operated
Final drive:
Shaft
Spark plug pipe type:
NGK, DPR8EA-9
Motor oil:
Mineral, 10W/40
Starter:
Electric

Dimensions

Length:
104.5 inch
Width:
35.4 inch
Height:
61.6 inch
Wheel base:
67.1 inch
Ground clearance:
6.1 inch
Seat height:
28 inch
Dry weight:
826.7 lbs

Chassis and suspension

Front
Suspension:
Cartridge
Suspension travel:
5.59 inch
Brake:
Twin Disk, Ø11.73 inch
Tire:
150 / 80 R16 H
Tire pressure:
0.17 PSI, with pillion: 0.17 PSI withpilion
Rear
Suspension:
mono shock, Swingarm
Suspension travel:
4.09 inch
Brake:
Disk, Ø12.6 inch
Tire:
150 / 90 R15 H
Tire pressure:
0.17 PSI, with pillion: 0.19 PSI withpilion
Frame type:
steel, Double cradle frame
