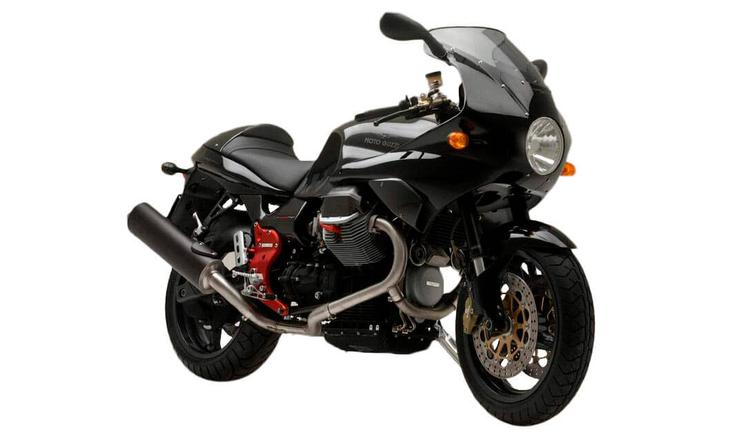

Moto Guzzi V11 Le Mans

Moto Guzzi V11 Le Mans

The 2005 Moto Guzzi V11 Le Mans is a stylish and Supersport motorcycle with OHV, Air cooled, 1064cc, V-twin and 90.28 HP (66.4 kW) @ 7800 rpm.

year icon
Model year
2005
power icon
Engine Power
90.28 HP (66.4 kW) @ 7800 rpm
Speed icon
Top Speed
140 mph

Technical Specifications

Engine and transmission

  • Engine type:
    2 cylinders, 4-stroke, V-twin
  • Displacement:
    1064 cc (65.01 cubic inches)
  • Bore × stroke:
    3.62 inch × 3.15 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    90.28 HP (66.4 kW) @ 7800 rpm
  • Torque:
    94.92 Nm (70.01 lb-ft) @ 6000 rpm
  • Throttle:
    Cable operated
  • Valve train:
    OHV, variable
  • Valves per cylinder:
    2
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Fuel injection
  • Compression:
    9.8:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Dry, multiple discs, hydraulic operated
  • Final drive:
    Shaft
  • Starter:
    Electric

Dimensions

  • Length:
    84.6 inch
  • Width:
    30.9 inch
  • Height:
    47.6 inch
  • Wheel base:
    58.7 inch
  • Trail:
    4.1 inch
  • Ground clearance:
    7.01 inch
  • Seat height:
    31.5 inch
  • Dry weight:
    498.2 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge - upside-down
    Suspension travel:
    4.72 inch
    Fork angle:
    25°
    Brake:
    Twin Disk, Ø12.6 inch
    Tire:
    120 / 70 R17 ZR
  • Rear
    Suspension:
    mono shock, Swingarm
    Suspension travel:
    5.04 inch
    Brake:
    Disk, Ø11.1 inch
    Tire:
    180 / 55 R17 ZR
  • Frame type:
    steel, Backbone frame

Other

  • ABS available:
    No
  • Fuel capacity:
    5.46 gals
  • Number of riders:
    2 persons
