Suzuki GSX 1100 EF

Suzuki GSX 1100 EF

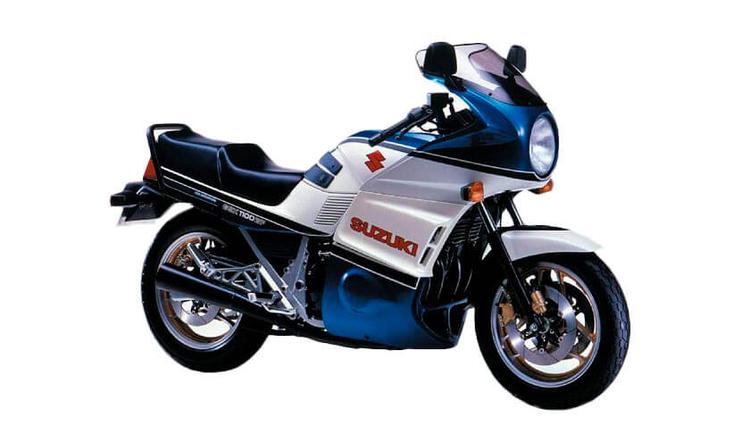

The 1986 Suzuki GSX 1100 EF is a stylish and Supersport motorcycle with Oil/air cooled, 1135cc, DOHC and 121.14 HP (89.1 kW) @ 8500 rpm.

year icon
Model year
1986
make icon
Make
Suzuki
power icon
Engine Power
121.14 HP (89.1 kW) @ 8500 rpm
Speed icon
Top Speed
142.92 mph

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    1135 cc (69.35 cubic inches)
  • Bore × stroke:
    2.91 inch × 2.6 inch (oversquare - shortstroke)
  • Cooling system:
    Oil/air cooled
  • Power:
    121.14 HP (89.1 kW) @ 8500 rpm
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    Analogue CDI (Capacitive Discharge Ign.)
  • Compression:
    9.7:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain

Dimensions

  • Length:
    88.2 inch
  • Width:
    28.7 inch
  • Height:
    50.4 inch
  • Wheel base:
    61 inch
  • Seat height:
    32.9 inch
  • Curb weight:
    564.4 lbs
  • Dry weight:
    524.7 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Twin Disk
    Tire:
    110 / 90 R16
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Disk
    Tire:
    130 / 90 R17
  • Frame type:
    steel, Double cradle frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.35 KW/lbs (2.87 lbs/HP)
  • Top speed:
    142.92 mph
  • Fuel capacity:
    5.28 gals
  • Number of riders:
    2 persons
