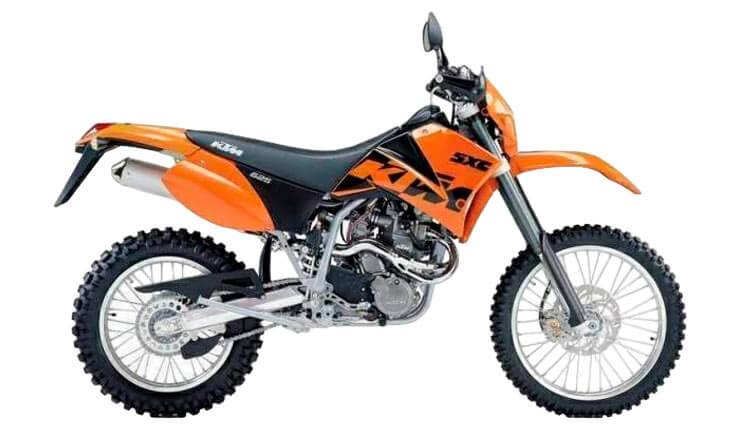

KTM 625 SXC
The 2003 KTM 625 SXC is a stylish and Offroad motorcycle with Water cooled, 625cc, SOHC and 54.38 HP (40 kW) @ 7000 rpm.
Technical Specifications
Engine and transmission
- Engine type:1 cylinders, 4-stroke, Single
- Displacement:625 cc (38.19 cubic inches)
- Bore × stroke:3.98 inch × 3.07 inch (oversquare - shortstroke)
- Cooling system:Water cooled
- Power:54.38 HP (40 kW) @ 7000 rpm
- Torque:55 Nm (40.57 lb-ft) @ 5500 rpm
- Valve train:SOHC, variable
- Valves per cylinder:4
- Sparks per cylinder:1
- Fuel supply system:Carburetor
- Ignition type:Digital CDI
- Funnel diameter:1.57 inch
- Compression:11.5:1
- Engine mounting:Transverse
- Lubrication system:Wet sump
- Gear box:Manual, manual, 5-speed
- Clutch:Wet, multiple discs, cable operated
- Final drive:Chain
- Spark plug pipe type:NGK
- Motor oil:Semi-Synthetic, 15W/40
- Starter:Kick-starter
Dimensions
- Wheel base:59.4 inch
- Trail:4.4 inch
- Ground clearance:14.17 inch
- Seat height:38.6 inch
- Curb weight:319.7 lbs
- Dry weight:291 lbs
Chassis and suspension
- FrontSuspension:Cartridge - upside-downSuspension travel:11.61 inchFork angle:27°Brake:Twin Disk, Ø10.24 inchTire:90 / 90 R21 RTire pressure:0.1 PSI
- RearSuspension:mono shock, SwingarmSuspension travel:12.6 inchBrake:Disk, Ø8.66 inchTire:140 / 80 R18 RTire pressure:0.1 PSI
- Frame type:alloy, Single cradle frame
Other
- ABS available:No
- Power-to-weight ratio:0.28 KW/lbs (3.62 lbs/HP)
- Top speed:80.78 mph
- Fuel capacity:2.38 gals
- Number of riders:2 persons
