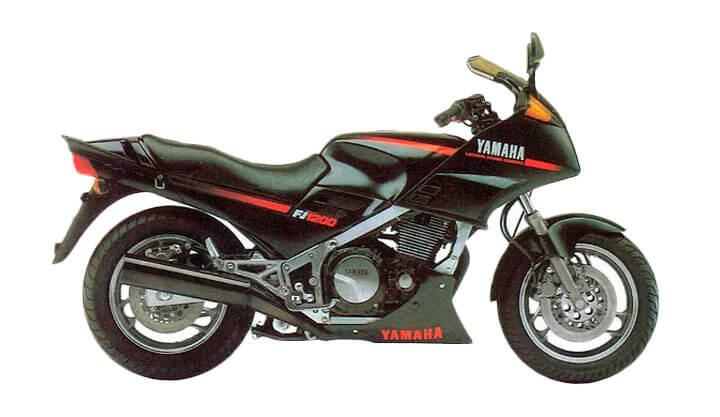

Yamaha FJ 1200

Yamaha FJ 1200

The 1988 Yamaha FJ 1200 is a stylish and Supersport motorcycle with Air cooled, 1188cc, Inline-4, DOHC and 129.03 HP (94.9 kW) @ 9000 rpm.

year icon
Model year
1988
make icon
Make
Yamaha
power icon
Engine Power
129.03 HP (94.9 kW) @ 9000 rpm
Speed icon
Top Speed
---

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    1188 cc (72.59 cubic inches)
  • Bore × stroke:
    3.03 inch × 2.51 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    129.03 HP (94.9 kW) @ 9000 rpm
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    TCI (Transistor Controlled Ignition)
  • Funnel diameter:
    1.61 inch
  • Compression:
    9.7:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DP8EA-9
  • Motor oil:
    20W/40
  • Starter:
    Electric

Dimensions

  • Curb weight:
    571 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Twin Disk, Ø11.1 inch
    Tire:
    120 / 80 R16 V
    Tire pressure:
    0.15 PSI, with pillion: 0.17 PSI withpilion
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Disk, Ø11.1 inch
    Tire:
    150 / 80 R16 V
    Tire pressure:
    0.17 PSI, with pillion: 0.2 PSI withpilion
  • Frame type:
    steel, twin spar

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.37 KW/lbs (2.73 lbs/HP)
  • Fuel capacity:
    6.34 gals
  • Number of riders:
    2 persons
