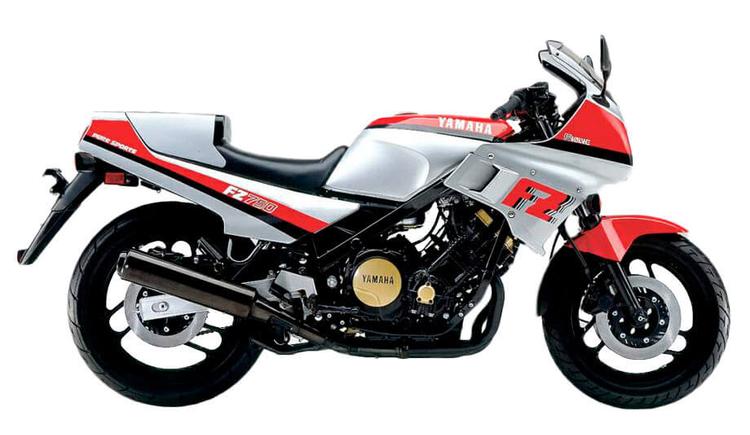

Yamaha FZ 750

Yamaha FZ 750

The 1985 Yamaha FZ 750 is a stylish and Supersport motorcycle with DOHC, 749cc, Water cooled and 105.23 HP (77.4 kW) @ 10500 rpm.

year icon
Model year
1985
make icon
Make
Yamaha
power icon
Engine Power
105.23 HP (77.4 kW) @ 10500 rpm
Speed icon
Top Speed
90.1 mph

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    749 cc (45.76 cubic inches)
  • Bore × stroke:
    2.68 inch × 2.03 inch (oversquare - shortstroke)
  • Cooling system:
    Water cooled
  • Power:
    105.23 HP (77.4 kW) @ 10500 rpm
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    5
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Funnel diameter:
    1.54 inch
  • Compression:
    11.2:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DPR8ES-L
  • Starter:
    Electric

Dimensions

  • Curb weight:
    531.3 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Twin Disk, Ø10.63 inch
    Tire:
    120 / 80 R16 V
    Tire pressure:
    0.13 PSI
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Disk, Ø10.63 inch
    Tire:
    130 / 80 R18 V
    Tire pressure:
    0.15 PSI
  • Frame type:
    steel, Double cradle frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.32 KW/lbs (3.11 lbs/HP)
  • Top speed:
    90.1 mph
  • Fuel capacity:
    5.81 gals
  • Number of riders:
    2 persons
