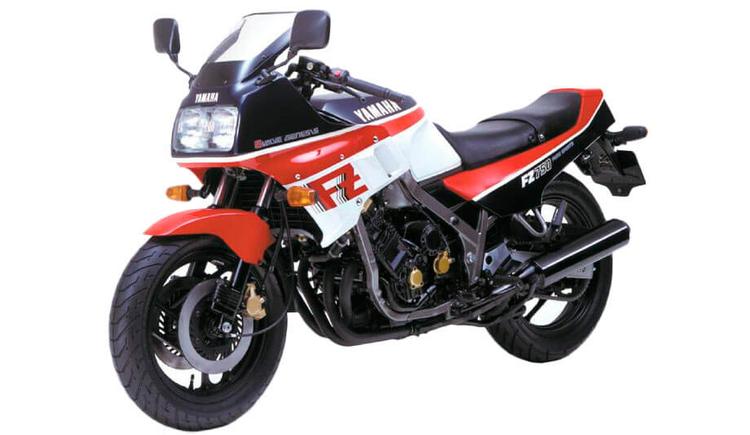

Yamaha FZ 750 Genesis

Yamaha FZ 750 Genesis

Yamaha released the FZ750 in 1985.

year icon
Model year
1985
make icon
Make
Yamaha
power icon
Engine Power
101.43 HP (74.6 kW)
Weight icon
Curb Weight
504.9 lbs

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    749 cc (45.76 cubic inches)
  • Bore × stroke:
    2.68 inch × 2.03 inch (oversquare - shortstroke)
  • Power:
    101.43 HP (74.6 kW)
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    TCI (Transistor Controlled Ignition)
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DR8ES-L
  • Motor oil:
    10W/40

Dimensions

  • Curb weight:
    504.9 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Twin Disk
    Tire:
    120 / 80 R16
    Tire pressure:
    0.13 PSI, with pillion: 0.15 PSI withpilion
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Disk
    Tire:
    130 / 80 R18
    Tire pressure:
    0.15 PSI, with pillion: 0.19 PSI withpilion
  • Frame type:
    aluminium, twin spar

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.33 KW/lbs (3.07 lbs/HP)
  • Fuel capacity:
    5.55 gals
  • Number of riders:
    2 persons
