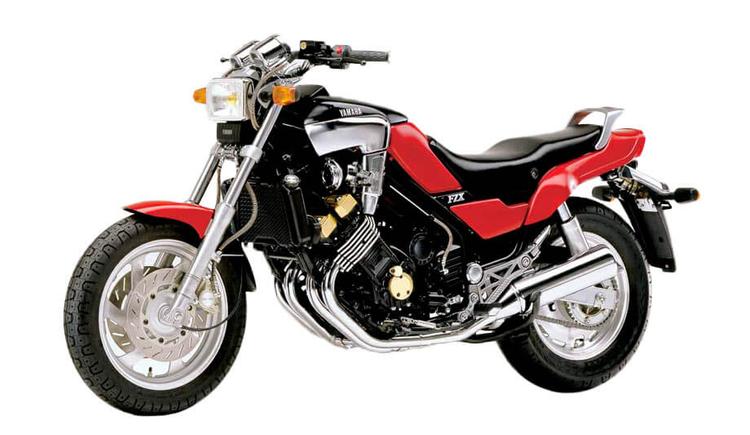

Yamaha FZX 750

Yamaha FZX 750

The 1989 Yamaha FZX 750 is a stylish and All-Rounder motorcycle with Water cooled, 749cc, Inline-4, DOHC and 95.31 HP (70.1 kW) @ 9500 rpm.

year icon
Model year
1989
make icon
Make
Yamaha
power icon
Engine Power
95.31 HP (70.1 kW) @ 9500 rpm
Speed icon
Top Speed
134.22 mph

Technical Specifications

Engine and transmission

  • Engine type:
    4 cylinders, 4-stroke, Inline
  • Displacement:
    749 cc (45.76 cubic inches)
  • Bore × stroke:
    2.68 inch × 2.03 inch (oversquare - shortstroke)
  • Cooling system:
    Water cooled
  • Power:
    95.31 HP (70.1 kW) @ 9500 rpm
  • Throttle:
    Cable operated
  • Valve train:
    DOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    TCI (Transistor Controlled Ignition)
  • Compression:
    11.2:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 6-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DR8ES-L
  • Motor oil:
    20W/40
  • Starter:
    Electric

Dimensions

  • Curb weight:
    496 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Twin Disk
    Tire:
    110 / 90 R16 V
    Tire pressure:
    0.16 PSI, with pillion: 0.16 PSI withpilion
  • Rear
    Suspension:
    twin shock, Swingarm
    Brake:
    Disk
    Tire:
    140 / 90 R15 V
    Tire pressure:
    0.16 PSI, with pillion: 0.17 PSI withpilion
  • Frame type:
    steel, Double cradle frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.31 KW/lbs (3.21 lbs/HP)
  • Top speed:
    134.22 mph
  • Fuel capacity:
    3.43 gals
  • Number of riders:
    2 persons
