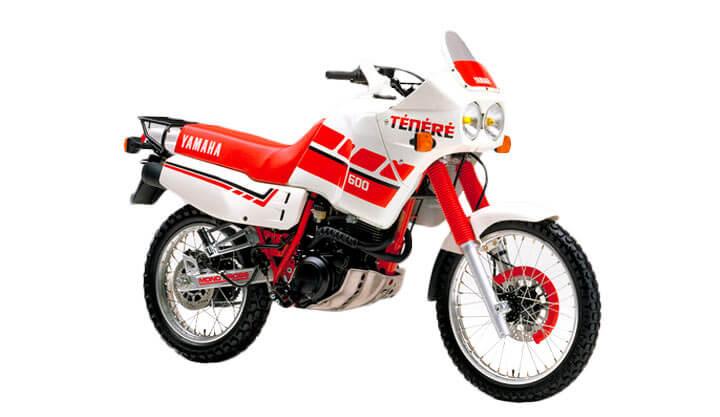

Yamaha XT 600

Yamaha XT 600

The 1988 Yamaha XT 600 is a stylish and Offroad motorcycle with Air cooled, 595cc, Single, SOHC and 43.64 HP (32.1 kW) @ 6500 rpm.

year icon
Model year
1988
make icon
Make
Yamaha
power icon
Engine Power
43.64 HP (32.1 kW) @ 6500 rpm
Speed icon
Top Speed
90.72 mph

Technical Specifications

Engine and transmission

  • Engine type:
    1 cylinders, 4-stroke, Single
  • Displacement:
    595 cc (36.35 cubic inches)
  • Bore × stroke:
    3.74 inch × 3.31 inch (oversquare - shortstroke)
  • Cooling system:
    Air cooled
  • Power:
    43.64 HP (32.1 kW) @ 6500 rpm
  • Throttle:
    Cable operated
  • Valve train:
    SOHC, variable
  • Valves per cylinder:
    4
  • Sparks per cylinder:
    1
  • Fuel supply system:
    Carburetor
  • Ignition type:
    Digital CDI
  • Compression:
    8.5:1
  • Engine mounting:
    Transverse
  • Lubrication system:
    Wet sump
  • Gear box:
    Manual 5-speed
  • Clutch:
    Wet, multiple discs, cable operated
  • Final drive:
    Chain
  • Spark plug pipe type:
    NGK, DP8EA-9
  • Motor oil:
    20W/40

Dimensions

  • Curb weight:
    339.5 lbs

Chassis and suspension

  • Front
    Suspension:
    Cartridge
    Brake:
    Single Disk
    Tire pressure:
    0.1 PSI, with pillion: 0.1 PSI withpilion
  • Rear
    Suspension:
    mono shock, Swingarm
    Brake:
    Drum
    Tire pressure:
    0.1 PSI, with pillion: 0.12 PSI withpilion
  • Frame type:
    steel, Single cradle frame

Other

  • ABS available:
    No
  • Power-to-weight ratio:
    0.21 KW/lbs (4.80 lbs/HP)
  • Top speed:
    90.72 mph
  • Fuel capacity:
    2.91 gals
  • Number of riders:
    2 persons
